Connecting the Tableau Server Background Jobs Table back to
Content
If you’ve ever tapped into the Postgres DB
that lies at the heart of Tableau Server, you’ll find that it is
a gold-mine of data about how your users interact with and experience your
Tableau Server. Statistics on everything from how frequently users access
workbooks, when they publish content and how well your server is performing can
be gleaned from this data. And what better way to do that than by hooking up
Tableau directly to get these insights.
Lots of posts have been written about how to access these
tables and Tableau has published a data dictionary
about what you’ll find within. There have also been numerous contributions
from the Tableau Community showing what can be done with this data. Jeffrey
Shaffer, who runs the amazing Tableau Blog data + science, has compiled a list of
these on his Tableau Reference Guide.
Much of my client work is focused on helping organizations
understand what’s going on inside their Tableau Server
platforms. On a recent assignment, I had the challenge of needing to understand
what was causing my client’s Extract Refresh jobs to experience
long delays. I knew that by tapping into the background_jobs
table I’d be able to find my answer.
To see where the delays were, I created a heat map detailing the
delays between the scheduled start time and the actual start time of each job.
This showed me where the bottlenecks were but one piece was still eluding me.
Specifically, I needed to connect the performance of each refresh job back to
the workbook or datasource that was experiencing the delay and then to the
project where it was located.
Looking for a Solution

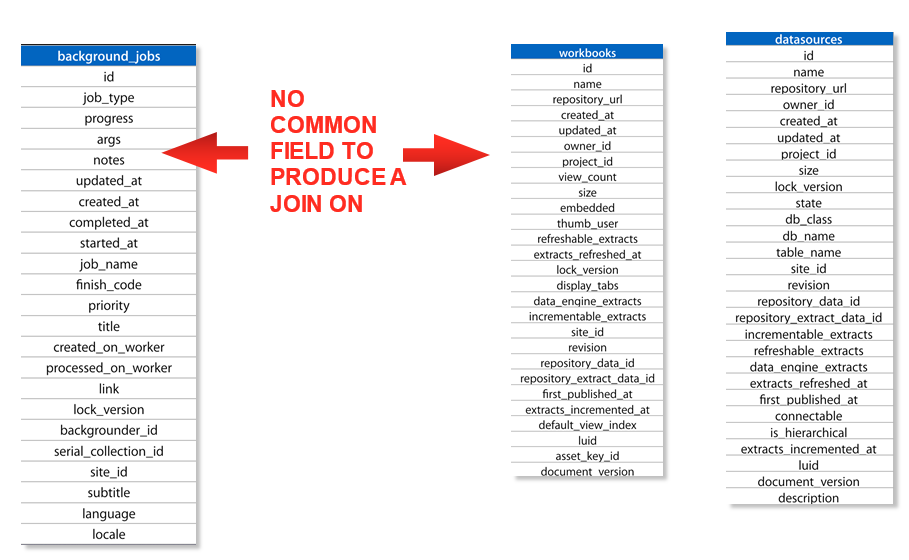

At first this would seem like an easy task. I would just join the
background_jobs table back to the workbooks table or datasources
table on a common ID field and go on with my analysis. That was until I looked
at the contents of these tables. The background jobs table does not
contain a workbook_id or datasource_id like the other tables within the
workgroup schema.
It does contain a “title”
field which has the name value of the content and a “subtitle”
field that displays either “Workbook”
or “Datasource” if the background job is related to an
Extract refresh but this is not unique.
What happens if you have a workbook in 2 different projects with
the same name? How would you know you were getting the job results of the right
workbook? This was indeed my problem so I began to look for a more unique way
to link these tables. After all, Tableau Server has to be able to make this
association so it can perform the desired operation, right?
Discovering the Link
I knew the answer had to be within the background_jobs table, so I went digging. Low and behold, I found my answer within the “args” field. For a Workbook’s Extract Refresh job, the “args” value looks something like this:
---
- Workbook
- 87994
- (string masked for confidentiality)
- 75596
- null
Could one of these values turn out to be the workbook_id or datasource_id I was looking for? Turns out the ID value after “Workbook” is the workbook_id value that will tie back to the workbooks table. Having found the workbook_id, I now needed it in a format that I could use in a join. The next step requires some custom SQL and a little knowledge about regular expressions.
Using the following statement, I was able to parse the “args” string into an object_id:
cast(split_part(
(regexp_replace(args,'---','')),'- ',3
) as integer) as object_id
The statement replaces the dashes and splits the string into its own field which is then cast into an integer so it can be successfully joined with either workbooks.id or datasources.id inside of Tableau’s Data Source editor.
Success! I now had a version of the background_jobs table
complete with the ID of the object being refreshed that I could link back to my
data!
If you’re like me and you’ve
been stuck searching for way to do this, I hope you enjoyed the post. I’ve
created a .tds file and
hosted it on GitHub so you don’t have to recreate the SQL if that’s
not your thing.
Happy hunting!
Mark Jacobson
Consultant, Slalom Consulting
Silicon Valley, California
